Pneumatic Cable Braid Shield Cutting Machine

JCW-322B CUT

All working areas of the machine are visible

Simple mechanical structure and high flexibility in use

Pneumatic equipment, no electricity required, safe and energy-saving

Quickly change the cutting tube and guide tube

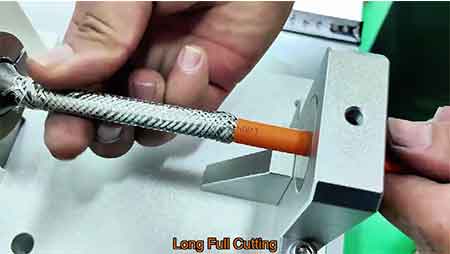

Partial cutting & full cutting

Process cables of different diameters

Inquire Now

ShieldCut

Shield Cut Fold

By simply changing guide tubes and cutting components, a single JCW-322B CUT machine can accommodate wire materials of various specifications; it can also be configured to produce different cutting lengths. This solution allows for a significant improvement in the efficiency and precision of shielding mesh cutting with a minimal capital investment.

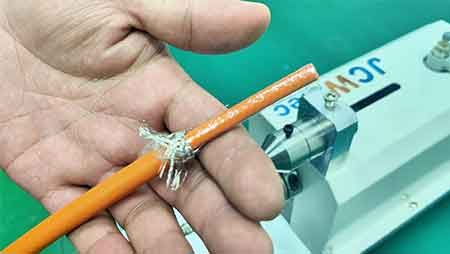

For applications requiring the inversion of the shielding mesh, an optional flipping fixture is available; similarly, fixtures of different specifications can be selected to suit the specific cable dimensions.

When placing an order for the JCW-322B CUT machine, please provide cable sample, we will then manufacture the corresponding fixtures and ship them together with the machine.

The JCW-322B CUT offers two specific versions designed to cover a diverse range of cables. The V2 model features a larger machine frame, as well as larger pneumatic cylinders and lead screws, enabling it to process heavy-gauge cables up to 120 mm².

Model	JCW-322B CUT Pneumatic Cable Braid Shield Cutting Machine
Cable range	V1: 3 - 15 mm overall diameter V2: 16 - 120 mm²
Fully cutting length	V1: 10 - 180 mm V2: 10 - 250 mm Cutting length is not strictly limited; it depends on the cable material itself.
Partial cutting length	2 - 70 mm
Folder	Optional
Compressed air	0.5 - 0.8 MPa ( clean and dry air )
Dimensions	V1: L 410 x W 145 x H 155 mm V2: L 600 x W 150 x H 210 mm
Weight	V1: 8 KG V2: 12 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
