LCD display, English menu
Data library saves 99 twisting programs
High-speed, 300 - 7500 RPM
Max 20 sections twisting
Twisting direction and speed are adjustable for each section

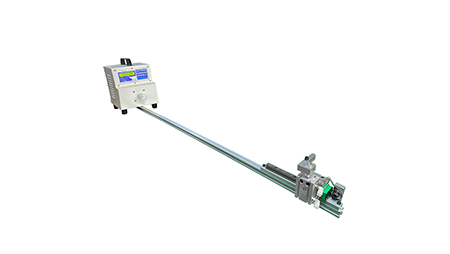

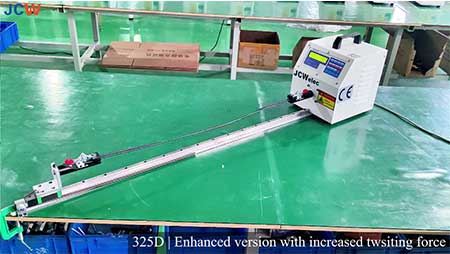

JCW-325D
LCD display, English menu
Data library saves 99 twisting programs
High-speed, 300 - 7500 RPM
Max 20 sections twisting
Twisting direction and speed are adjustable for each section
Model | JCW-325D Electric Wire Twisting Machine |
Function | Twist 2 wires into pairs, twist cycles, twist speed, data library, multi-section twisting |
Twist length | Max 1000 mm |
Twisting speed | 300 - 7500 RPM |
Twisting cycles | 0.5 - 9999.9 |
Wire diameter | 2 x 1.2 mm max |
Data library | 99 wire programs |
Multi-section twisting | 20 sections max |
Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
Dimensions | L 1320 x W 240 x H 290 mm |
Weight | 18 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
