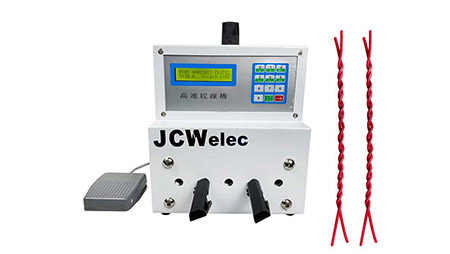

JCW-325B High-speed Two Grippers Wire Twister

Twist two pairs of single wires, ultra-high efficiency


The JCW-325B motorized wire twisting machine is designed to replace traditional wire twisting by hand or manual tools. This machine uses an electronic control system, the axis is connected to the motor directly with no belt consumption.

Complete industrial-grade protection circuit design to ensure trouble-free operation for more than 20,000 hours.

Complete data protection function, data can be stored permanently.

The machine is capable to carry out multi-section twisting. The twisting speed and direction of each section can be set individually.

Model

JCW-325B Electric Wire Twisting Machine

Function

Twist 2 pairs of wires, twist cycles, twist speed, data library, multi-section twisting

Twisting speed300 - 7500 RPM
Twisting cycles0.5 - 9999.9
Wire diameter2 x 2 x 1.2 mm max
Data library99 wire programs
Multi-section twisting20 sections max
Power supply
AC 110 - 220 V ± 10%,
DimensionsL 220 x W 240 x H 290 mm
Weight18 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
