High-end Seal Crimping Wire Dipping Machine

High-end Seal Crimping Wire Dipping Machine

ModelJCW-CST16 Automatic Single Wire Sealing Crimping to Tinning Machine
Function

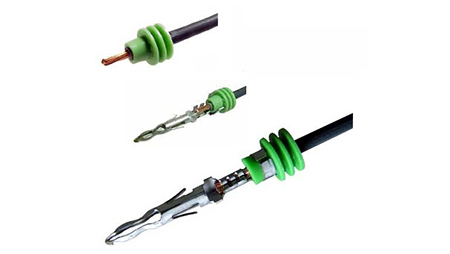

Wire measuring and cut into length, Side A: wire stripping, twisting, sealing, crimping; Side B: wire stripping, conductor twisting, wire thinning. Sealing alarm

Raw materialAV, AVS, AVSS, CAVUS, KVKIV, UL
Wire SizeAWG28 - 16
Wire O.D.φ0.8 - 3.2 mm
Cut length ( L )50 - 99999 mm
Cut length increment1 mm
Cut length accuracy 0.1 mm ± 0.005 x L
Strip length0 - 15 mm
Twist length2 - 10 mm
Tinning length2 - 10 mm
Crimping pressServo motorized
Crimping force 2 tons
DisplayColor touch screen, English / Chinese  [ other languages on request ]
Data library100 programs
Product rate2000 pcs/h by 100 mm wire length [ Sealing & Crimping & Tinning ]
Optional peripheralsUpper-computer software, CFM, CCD, Wire prefeeder, Wire stacker
Air supply0.5 MPa [ clean and dry air ]
Power supplyAC 110 - 220V ± 10%, 50 / 60 Hz
Dimensions
L 1200 x W 1100 x H 2300 mm
Weight450 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
