The JCW-TS204 is a portable ultrasonic soldering machine with an integrated design. It has an exquisite appearance, lightweight, compact structure, safe and simple operation, and low maintenance cost.

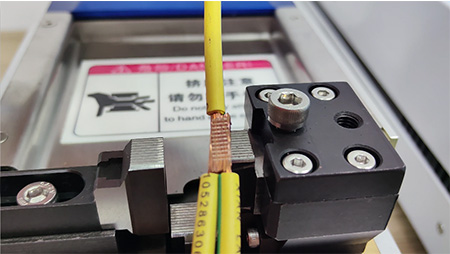

The JCW-TS204 ultrasonic welding machine can provide enterprises with efficient welding methods and reduce production costs. It is suitable for wire harness welding ranging from 0.5mm² to 30mm² copper wire/aluminum wire and is widely used in many fields such as automobiles, instrumentation, communication equipment, home appliances, etc.


JCW-TS204 Ultrasonic Welder for Wire丨Ultrasonic Wire Splicer

Work frequency20 kHz
Rated power2000 - 3000 W
Cross section area0.5 ~ 30 mm², copper & aluminum
HMI4.3" color touchscreen
Cycle timeapprox 0.6 seconds, depending on wire sizes
Welder lifetime100,000 times welding
Power supplyAC 220V ± 10%, 50 / 60 Hz
Air supply0.3 - 0.6 MPa ( clean and dry air )
DimensionsL 573 x W 220 x H 190 mm
L 345 x W 475 x H 155 mm
Weight25 + 10 KG

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
