Heavy-duty Adhesive Lined Heat Shrink Sleeve Heating Machine

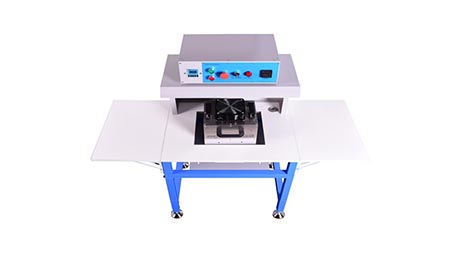

JCW-HSB36 Heavy-duty Adhesive Lined Heat Shrink Sleeve Heating Machine

JCW-HSB36 heat-shrinkable tube processing equipment is a semi-automatic unit designed to seal products for wire bundles, splice terminals and ring terminals. Compared to labor-intensive heat guns, time and costs are significantly reduced because an operator can prepare assemblies while the heat shrink process is underway.

8 heating pipes installed at the top and bottom ensure that the material is heated evenly, which gives the JCW-HSB36 a wide range of applications for heavy-duty heat shrink tubing, dual-wall, adhesive / glue lined heat shrink tubing, etc. The processing capacity is up to 100mm O.D.

Independent heating and control systems, the heating time can be set freely, and it can work continuously for 24 hours. With a variety of control methods: manual triggering to start heating, or automatic cycle heating start-stop mode. The heating time and stop time can be adjusted freely according to actual needs.

Safety

Double-layer design of the heating zone shell, isolate the temperature inside and outside, and reduces airframe surface temperature to protect operators.

The JCW-HSB36 is equipped with a blowing delay function. There is a 1-minute forced cooling time before shutdown to protect the heating unit.
