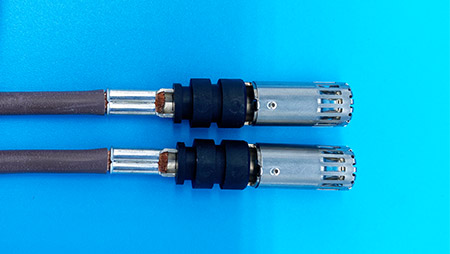

Custom Connector Crimping, Europe Type Crimp Applicator

Custom Connector Crimping, Europe Type Crimp Applicator

Model

JCW-8TC Heavy-duty Europe Type Wire Stripping to Crimping Machine

FunctionSingle wire, Multiconductor cable, Wire stripping, Terminal crimping
Terminal typeSide-feed type ( horizontal )
Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Crimp force8 tons
Conductor cross-sectionsAWG 36 - AWG 8
Stripping length1 - 15 mm
Cutting accuracy0.05 - 0.1 mm
Position accuracy0.05 - 0.1 mm
Stroke30 mm
Stroke numbers4000 / h
Rated power output
3000 W
Touch screen7", English
Data library99
CFMCompatible
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.5 - 0.7 MPa ( clean and dry air )
DimensionsL 1050 x W 700 x H 1950 mm
Weight150 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
