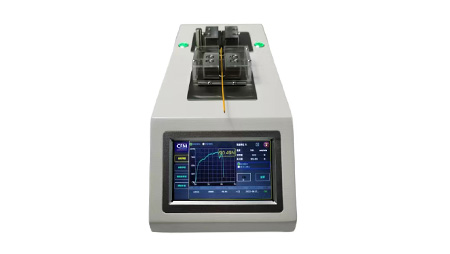

Fully Motorized Terminal Pull Force Tester

JCW-Q100 MES

Automatic reset after finishing test cycle

Communication connection: USB data interactive transmission of text data or import into MES system ( ERP protocol open )

Terminal clamp: automatic wedge clamp, Wire clamp: an automatic.

Data processing: test data can be recorded, transmitted, and cleared

Data display: display real-time pulling force and peak pulling force at the same time

Unit conversion: kg, N, LB. Quick conversion, can be set to power on state

Inquire Now

Terminal Pull Force Tester

Model	JCW-Q100 MES Wire Crimp Pull Tester
Function	Pulling speed, destructive test, non-destructive test, data printer, RS232, MES connection
Capacity	100 kg.f = 980 N = 220 Lbf
Resolution	0.01 N
Accuracy	0.05 %
Pull stroke	14 mm
Pulling speed	0-300 mm/min
Display	English / Chinese [ other languages on request ]
USB connection	YES
Internet connection	YES
Wifi connection	NO
Adapter	DC 19V
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 375 x W 160 x H 130 mm
Weight	11 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
