Servo motorized crimp press
4.3" colorful touch screen
Set crimp height precisely via HMI
Strip or crimp function can be used individually
Safety guard only on request
Fully electric model is optional
JCW-2TC SERVO
Servo motorized crimp press
4.3" colorful touch screen
Set crimp height precisely via HMI
Strip or crimp function can be used individually
Safety guard only on request
Fully electric model is optional
Servo Strip Crimp Machine
Strip & Crimp Machine with Servo Crimp Press

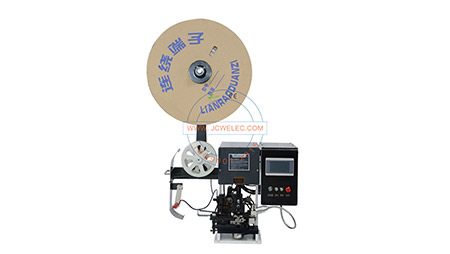

JCW-2TC is a servo-powered strip-and-crimp machine engineered for horizontally fed reel-style terminals.
The horizontal feeding layout suits continuous strip terminals delivered on reels, supporting uninterrupted cycling for high-volume harness production.
Servo actuators govern both insulation stripping and crimping strokes with closed-loop position control.
Operators can adjust crimp height, stripping length and production speed via the controller, storing parameter recipes for fast changeovers between different terminal models.
Servo precision delivers consistent crimp height and insulation pullout performance, lowering scrap rates compared to conventional pneumatic crimp presses.
This unit fits standard reel terminal jobs widely seen in automotive harness, consumer electronics and control wiring workshops that demand stable crimp quality and flexible setup.
Crimp force monitoring can be fitted optionally for quality control.
| Model | JCW-2TC SERVO Strip & Crimp Machine with Servo Crimp Press |
| Function | Single wire, Multiconductor cable, Wire stripping, Terminal crimping, Side/horizontal feed reeled terminal, servo controlled press |
| Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
| Crimp force | 2 tons [ 4 tons / 8 tons optional ] |
| Conductor cross-sections | 0.03 - 2 mm² [ AWG 32 - 14 ] [ Customizable ] |
| Stripping length | 1 - 10 mm |
| Stroke | 30 mm |
| Data library | 10 programs |
| Rated power | 750 W |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Air supply | 0.3 - 0.6 MPa ( clean and dry air ) |
| Dimensions | L 550 x W 550 x H 600 mm |
| Weight | 88 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
