50mm² Insulated & Non-insulated Ferrule Square Crimping Machine

JCW-320K

Heavy-duty ferrule dedicated crimping machine of JCW-320 series

Max capacity up to 50mm², square crimp profile

Compatible with insulated and non-insulated bootlace ferrules

Reinforced rigid frame for high-load large ferrule crimping

Inquire Now

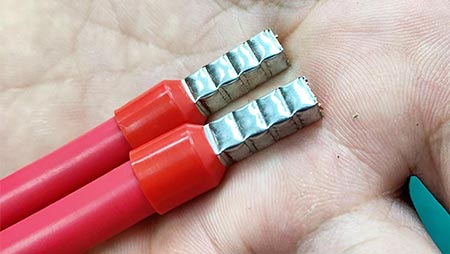

Square Crimp Profile

JCW-320K 50mm² Insulated Ferrule Square Crimping Machine

The JCW-320K is the heavy-duty ferrule-specialized model within JCW-320 series, built to process large cross-section bootlace ferrules up to 50mm².

It works for both insulated and non-insulated wire ferrules, adopting square crimp geometry for solid, consistent compression.

Reinforced machine frame delivers ample crimp force to handle thick power conductors reliably.

Custom dedicated tooling matches different large ferrule sizes.

It targets heavy power cabinet, inverter and energy wiring workshops where big ferrule termination is required.

Model	JCW-320K Ferrule Square Crimp Machine
Function	Loose insulated & non-insulated end sleeve, square profile crimping
Capacity	0.5 - 50 mm²
Crimping force	25 KN
Air regulator	Yes
OEM	Yes
Activation	Foot pedal
Air supply	0.5 - 0.8 MPa ( clean and dry air )
Dimensions	L 235 x W 180 x H 150 mm
Weight	10 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
