Ultra-short Wire Cutting Stripping Machine [ min.insulation 8mm ]

JCW-CS03D ULTRA

Cut Strip series ultra-short wire gripper model

Single core wire only

Gripper feeding structure

Specially built for ultra-short wire

Double-end stripping available

Minimum middle insulation: 8mm

Inquire Now

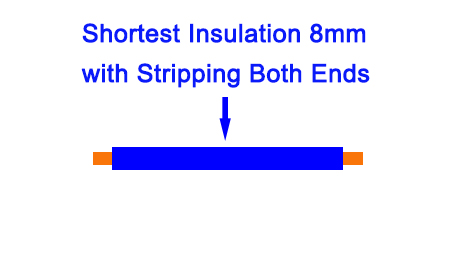

Strip both ends, leave 8mm insulation

Ultra-short Wire Cutting Stripping Machine [ min.insulation 8mm ]

JCW-CS03D Ultra is a gripper-style variant inside our Cut Strip series, purpose-engineered for ultra-short wire applications.

Equipped with dedicated gripper mechanism, it can strip both ends of one wire while retaining only 8mm insulated section in the middle, which meets the strict requirements of miniature wiring and hook-up wire jobs.

It inherits the programmable system of the CS03 platform. Operators are able to edit, save and recall different wire recipes rapidly for batch switching.

The gripper feeding design provides stable clamping force and consistent accuracy even when handling extremely short wire blanks.

JCW-CS03D ULTRA is the ideal solution for customers producing large volumes of ultra-short double-end stripped single core wires.

Model	JCW-CS03D Ultra Automatic Short Wire Cutting Stripping Machine
Function	Wire measuring, Cut into length, Full stripping, Partial stripping, Middle strip, Length correction
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass
Conductor cross-sections	0.03 - 6.0 mm² [ AWG30 - AWG 10 ]
Insulation length	8 mm
Cutting length accuracy	0.002 x L
Data library	100 programs
Display	4.3" color touchscreen, English / Chinese [ Other languages on request ]
Compatible peripherals	Wire prefeeder, robot arm, conveyor belt
Wire feeding	Left: roller Right: robot arm
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	Machine: L 460 x W 470 x H 350 mm
Dimensions	Straightener: 300 mm
Weight	33 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
