Designed for ultra-short wire cutting and stripping
Cutting length reaches 27mm while dual-end stripping
Metal and urethane rollers for selection
User-friendly multi-language display
Fully programmable
JCW-CS03D
Designed for ultra-short wire cutting and stripping
Cutting length reaches 27mm while dual-end stripping

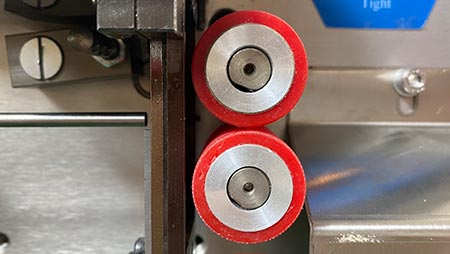

Metal and urethane rollers for selection
User-friendly multi-language display
Fully programmable
Minimum 27mm Wire Cut Strip Machine
Short Wire Cut Strip Machine [ min.cutting length 27mm ]
JCW-CS03D is a dedicated short wire model within the Cut Strip series, designed to handle demanding short wire production.
It can cut wire down to 27mm minimum length and finish stripping on both ends in a single working cycle.
Built on the mature CS03 platform, it supports editable, savable and quickly recallable wire programs for flexible batch switching.
Optimized feeding and cutting mechanics keep stable precision even for these short wire pieces.
Perfect for harness orders that need mass production of short wires stripped at both ends.
| Model | JCW-CS03D Automatic Short Wire Cutting Stripping Machine |
| Function | Wire measuring, Cut into length, Full stripping, Partial stripping, Middle strip, Length correction |
| Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass |
| Conductor cross-sections | 0.03 - 6.0 mm² [ AWG30 - AWG 10 ] |
| Cutting length ( L ) | 27 - 999999 mm |
| Cutting length accuracy | 0.002 x L |
| Stripping length | Front ( right ) side: max 40 mm |
| Rear ( left ) side: max 30mm | |
| Production rate | 4600 pcs/h by 50mm wire length |
| Data library | 100 programs |
| Display | 4.3" color touchscreen, English / Chinese [ Other languages on request ] |
| Compatible peripherals | Wire prefeeder, robot arm, conveyor belt |
| Wire feeding | Metal roller [ Urethane roller on request ] |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Air supply | 0.4 - 0.7 MPa ( clean and dry air ) |
| Dimensions | Machine: L 460 x W 470 x H 350 mm |
| Straightener: 300 mm | |
| Weight | 33 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
