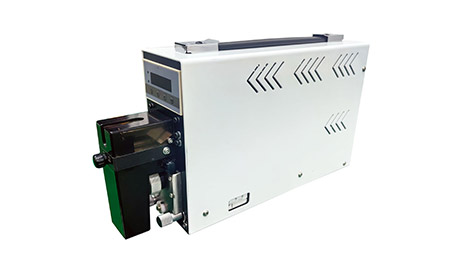

ModelJCW-S05EN Fully Electric Wire Stripping Machine
FunctionFull stripping, partial stripping, cut diameter, strip position, pull-off length
Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections0.03 - 4 mm² [ AWG 32 - 11 ]
Wire diameter4 mm
Stripping length1 -  20 mm
Diameter increment0.01 mm
Cycle time0.3 S
OEMYes
Power supplyAC 110 - 220V, 50 / 60 Hz
DimensionsL 380 x W 85 x H 188 mm
Weight4.5 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
