JCW-320C Electric Bench Top Terminal Crimping Machine

12.7 KN crimping force, fast change crimp die sets, dozens of die sets for selection


JCW-320 Series Portable Bench-top Crimper

The JCW-320 series terminal crimping machines now have over 10 electric and pneumatic models. We are continuously improving existing models and developing new ones. The main feature of the JCW-320 series is that all models are compact and portable, and can crimp various closed barrel and open barrel terminals by quickly changing the crimp die sets.


Different from manual crimp tools, the JCW-320 series crimpers are lightweight and very efficient, so to reduce the physical force required by hand tools but offer a more reliable crimping effect. The operation is very simple and standardized, even novices can handle these crimping machines easily.


The JCW-320 series crimping machines are activated by a foot pedal, the operator can place the terminal and wire with two hands, which has achieved a safer operation, reducing crimping cost and improving crimping quality.



Model

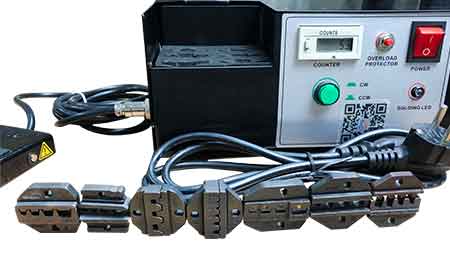

JCW-320C Electric Crimping Machine

FunctionInsulated terminal, non-insulated terminal, flag terminal, fast change dies set, crimp counter.
Cable rangeInsulated end sleeve: 25 mm²
Non-insulated terminal: 10 mm²
Crimping force12.7 KN
Crimp dies sets

7 sets

Rated power90 W
OEMYes
ActivationFoot pedal
Power supply
AC 110 / 220 V ± 10%, 50 / 60 Hz
DimensionsL 325 x W 265 x H 150 mm
Weight17 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
