Fully Automatic Pre-insulated Terminal Crimping Machine

JCW-CST04

Wire Cross section: 0.05 - 2 mm² ( AWG30 -14 )

Cutting length: 30 - 99999 mm

Strip length: 0.1 - 10.5 mm

Crimping force: 20 KN ( 2 tons )

2000 pcs/h by 100mm wire length [ CRIMP DUAL ENDS ]

Display: English / Chinese [ Other languages on request ]

Inquire Now

JCW-CST04 Fully Automatic Pre-insulated Terminal Crimping Machine

Dual-ends crimping units cover various types of insulated terminals

Feature of the machine

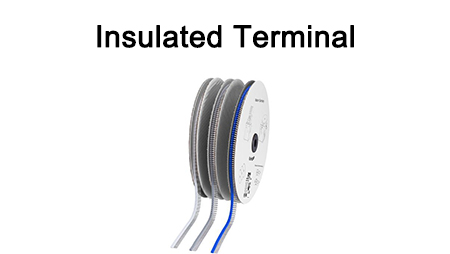

The JCW-CST04 is a fully automatic wire cut, strip, and crimp machine, specially designed for processing open-end type insulated chain crimp terminals. Compact design saves space, highly robust machine configuration. The machine allows prefeeding, cutting, stripping, and crimping of wires in the cross-section range from 0.05 mm² to 2 mm², crimping force is 2 tons ( 20 KN ). All parameters such as wire data and crimp data can be saved and retrieved for future use.

High quality, high output, and simple operation

The JCW-CST04 is a fully automatic wire processing machine for the toughest requirements. This servo motorized machine integrates high-quality components, a highly rigid transmission structure, high-speed control system. Production parameters are entered with the 7" color touchscreen monitor via the intuitive user interface to reduce training time and minimize entry errors. The JCW-CST04 offers vivid detection functions, wire lack detection, wire knot detection, stripping detection, crimping detection, air pressure detection, etc.

Optional peripherals

- Crimping force monitoring ( CFM )

- Wire prefeeder for keeping proper wire tension

- Conveyor belt for stacking finished wire

Model	JCW-CST04 Fully-auto Insulated Chain Terminal Crimping Machine
Function	Wire prefeeder, wire measuring and cutting, single / dual-end strip, sing / dual-end crimp, cut depth, wire run-out detection, wire knot detection, air pressure detection, wire stripping detection, terminal crimping detection, crimp positioning.
Conductor cross-section	0.03 - 2 mm² ( AWG 30 - 14 )
Cut Length ( L )	30 - 99999 mm
Cut accuracy	0.5 ± 0.002 x L
Strip length	0.1 - 10.5 mm
Production rate	2000 pcs/h by 100 mm wire length
Display	English / Chinese [ Other languages on request ]
Rated power	2500 W
Optional peripheral	Wire pre-feeder, CFM, wire stacker
Power supply	AC 110 - 220V ± 10%, 50 / 60Hz
Air supply	0.4 - 0.7 MPa [ Clean and dry air ]
Dimensions	L 1800 x W 1100 x H 1700 mm
Weight	550 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
